Factory Supply High Quality Automatic Self-cleaning Tubular Backwashing Filter Housing Strainer

Name: Factory Supply High Quality Automatic Selfcleaning Tubular Backwashing Filter Housing Strainer
Brand: Lehler
Price: 1 USD

China Factory Supply High Quality Automatic Self-cleaning Tubular Backwashing Filter Housing Strainer wholesale

Brand Name : Lehler

Place of Origin : QINGDAO

MOQ : 1

Payment Terms : T/T

Delivery Time : 35

Slot Opening : 150 Microns

Installation Type : Vertical/Horizontal

Inlet/Outlet Connection : Flanged/Threaded

Brush : Metal Brush

Inlet : DN150

New Application : Sizing For Paper Mill

Surface Finish : Mirror Polish

Power Box : EX-proof

Contact Now

Factory supply high quality Automatic self-cleaning tubular Backwashing Filter housing strainer

Product Description

Tubular back-washing filters are used in pulp and paper industry for continuous operation of critical processes such as wet end protection and coating. The automatic tubular back-washing filter is used in parallel with more than two filter units. The number of filter units working online can be set according to the flow rate and the amount of solids contained.

Factory Supply High Quality Automatic Self-cleaning Tubular Backwashing Filter Housing Strainer

Working Principle

The liquid enters the filter through the inlet manifold and is evenly distributed to each filter cartridge for filtration, with the fluid flowing from bottom to bottom. Through the filter element, the filter element retains solid particles, and the filtered water flows out from the top of the filter cartridge after passing through the filter element, and then flows out after collecting through the outlet header. Filters enter downstream equipment. With the continuous accumulation of particles on the surface of the filter element, the differential pressure of the filter gradually rises. When filter differential pressure When the set value is reached, the import and export valves are controlled automatically at the same time. After the system program receives the differential pressure induction, the import and export valves are the same. When closed, the cleaning port on the side of the filter cartridge is opened, and the filter backwashing is controlled. After backwashing, the differential pressure of the system recovers the initial pressure difference.

Technical Features &Advantages

Using pneumatic blowdown valve, backwashing time is short, less water consumption.

Multi-group filter unit design, can meet the needs of large flow filtration.

Automatic PLC control system can achieve remote control.

Automatic backwashing, the filter unit can be backwashed successively, and the installation form is flexible.

Parameter	Value
Working fluid	Water, oil, paint, chemical solution, low and medium viscosity fluid
Flow rate	20 m3/h to 3000 m3/h
Working pressure	< 1.6 MPa
Working temperature	< 95 ℃
Control panel	Touch screen, switch, PLC controlled.
Cleaning mode	Time interval, differential pressure
Cleaning mechanism	Brush, suction scanner, backwashing
Power supply	220V AC or 380-450 V 3-phase
Filter body material	Carbon steel (casting), Stainless steel 304, 316L
Filter screen type	Wedge wire screen/ V-slot screen, Sintered wire mesh screen (with perforated metal)
Filter screen material	Stainless steel 304, 316L, 904L or Duplex stainless steel 2205 2507 (for sea water)
Micron rating	5 micron to 500 micron, 1 mm, 2 mm, 3 mm

Productive Process

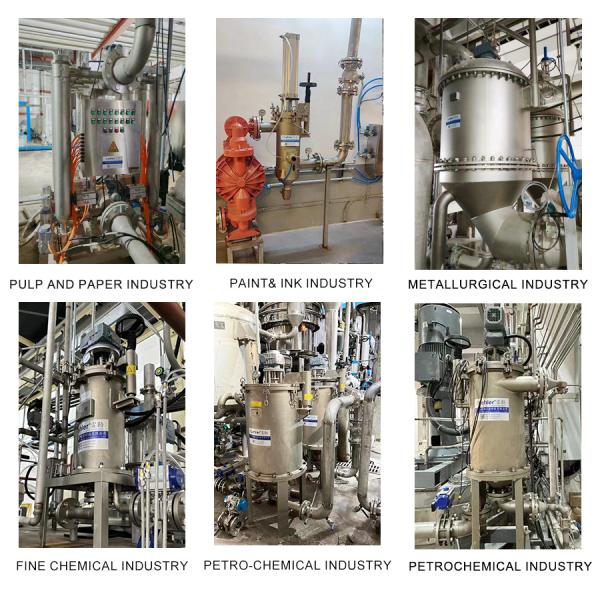

Application

Quality Control & Delivery

Quality Control

Product Delivery

Plywood Case for Exporting Package.

Exhibitionds

Certifications

Company Profile

Qingdao Lehler Filtering Technology Co., Ltd. is a national high-tech "The new special expertise" type of enterprise. Lehler has passed the GB/T 19001-2016 quality management system, GB/T 24001-2016 environment management system,GB/T 45001-2020 occupational health management system certification,Eu CE certification.Lehler to perfect production technology research and development, pre-sales and after-sales service system to provide customers with "reduce costs, increase benefits" filtration solutions.
